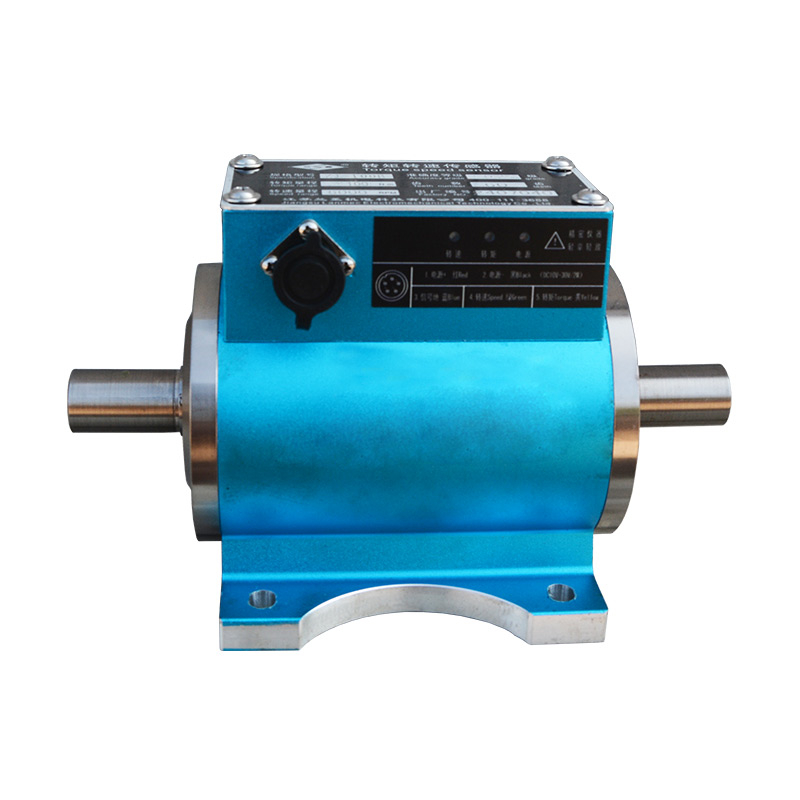

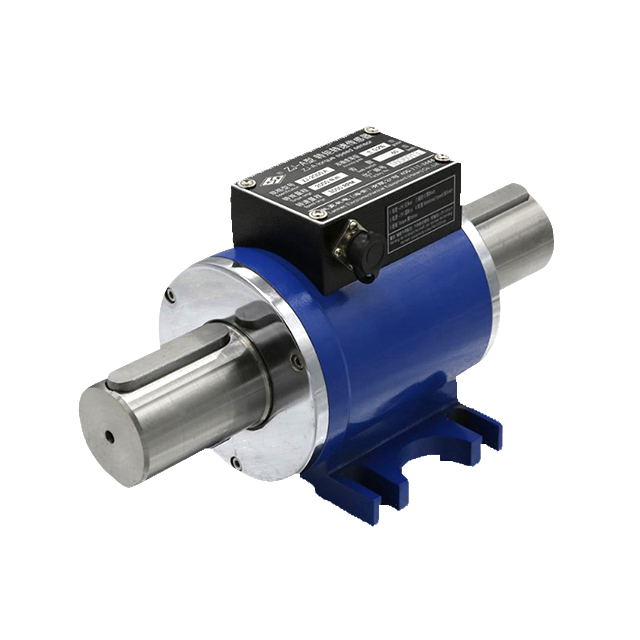

ZJ-B Type Torque And Speed Sensor

Quantity:
Availability:





Inquire Add to Basket

Product Description

Installation dimension drawing of the torque and speed sensor external device shape：

Specification （N.m）	Ø d	Ø D	L1	L2	L3	L4	L5	L6	H1	H	L	h	key bhl*n	T	A	h1
5-50	18	78	31	23	80	102	80	100	50	115	188	10	6X6X25X1	225	32	4
100	18	78	31	23	80	102	80	100	50	15	188	10	6X6X25X1	20.5	32	4
200	28	90	41	23.5	80	101	86	105	60	131	209	10	7X8X35X1	31	32	4
500	38	102	55	21.5	85	100	100	120	65	142	238	12	10X8X50X2	22	38	5
1000	48	116	70	25.5	84	105	124	150	75	159	275	15	14X9X65X2	27.5	42	5
2000	48	116	70	25.5	84	105	124	150	75	159	275	15	14X9X65X2	27.5	42	5
5000	75	145	105	48	69	100	156	180	90	188.5	375	15	20X12X95X2	42

Product Features

The signal output can be freely selected in terms of waveform, either a square wave or a pulse wave.

2. It features high detection accuracy, good stability and strong anti-interference ability.

3. It can continuously measure forward and reverse torque without the need for repeated zero adjustment.

It can measure both static torque and dynamic torque.

5. Small in size, light in weight and easy to install. The sensor can be used independently of the secondary instrument. As long as ± 15VDC(200mA) power supply is provided according to the socket pin number, it can output an equal square wave or pulse wave frequency signal proportional to the impedance and torque.

6. Measuring range: 0- 500,000 nm. Standard range is optional, and special ranges can be customized.

Application Scope:

Detection of output torque and power of rotating power equipment such as electric motors, engines, and internal combustion engines;

2. Detection of torque and power of fans, water pumps, gearboxes and torque wrenches;

3. Torque and power detection in railway locomotives, automobiles, tractors, aircraft, ships and mining machinery;

4. It can be used for the detection of torque and power in sewage treatment systems.

5. It can be used to manufacture viscometers;

6. It can be used in process industries and flow industries; Basic principle: Torque measurement: The strain gauge electrical measurement technology is adopted. A strain bridge is formed on the elastic shaft. By providing power to the strain bridge, the electrical signal of the torsion on the elastic shaft can be measured. After amplifying the strain signal, it undergoes voltage/frequency conversion to become a frequency signal proportional to the torsional strain.

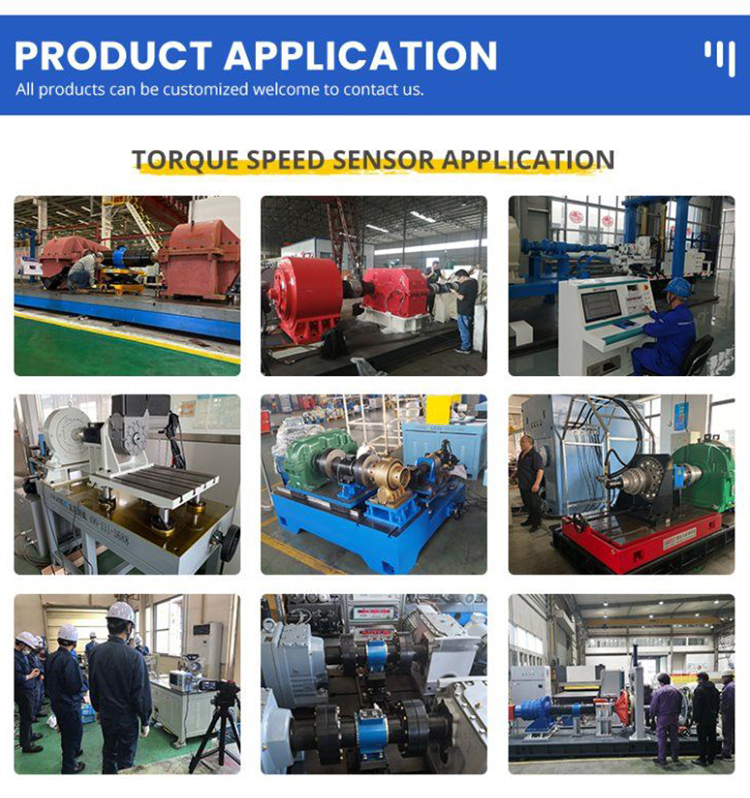

Sensor application scenarios
