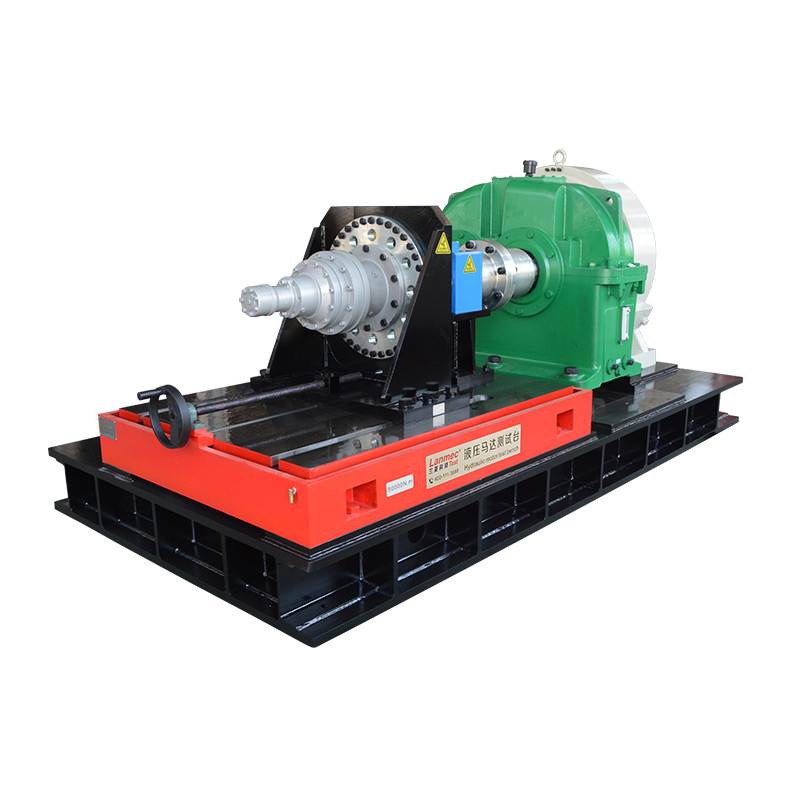

50000N.m Hydraulic Motor Test Bench

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Rated torque(N•m)	Excitation coil		Allowable rotational speed(r/min)	Slip power（KW）	Overall dimensions		Shaft connection dimensions
		Voltage(V)	Current(A)			H	L	d(h7)	b(p7)	L1
FZ2.5.J	2.5	24	0.4	1500	0.03	110	88	10	3	20
FZ5.J	5	24	0.5	1500	0.06	138	94	12	4	25
FZ10.J	10	24	0.6	1500	0.12/0.8	166	103	14	5	25
FZ25.J	25	24	0.8	1500	0.2/1.2	196	115	20	6	36
FZ50.J	50	24	1.0	1500	0.3/2	240	140	25	8	42
FZ100.J/Y	100	24	1.2	1500	3/5	284	249	30	8	58
FZ200.J/Y	200	24	1.8	1000	4/8	329	260	35	10	58
FZ400.J/Y	400	24	2.5	1000	5/12	400	313	45	14	82
FZ630.J/Y	630	36	2.5	750	15	441	374	60	18	105
FZ1000.J/Y	1000	36	2.5	750	20	523	417	70	20	105
FZ1500.J/Y	1500	36	3.0	750	25	556	480	75	20	105
FZ2000.J/Y	2000	36	3.0	500	30	619	486	80	22	130
FZ5000.J/Y	5000	36	3.5	400	50	824	576	90	25	140
FZ10000.J/Y	10000	36	4.0	300	65	1126	651	120	32	160
FZ20000.J/Y	20000	48	5.0	300	90	1205	916	140	36	180
FZ30000.J/Y	30000	90	4.0	300	132	1205	1271	160	40	200
FZ50000.J/Y	50000	90	5.0	250	160	1298	1965	180	45	250

The motor test bench is mainly used to detect the effective power of various hydraulic motors, pneumatic motors and other power machines. It is an indispensable testing device in the characteristic tests of power machines and the efficiency tests of transmission machinery.

The basic model of this product is designed for unidirectional testing. If users need to conduct bidirectional tests simultaneously, please specify your requirements when placing an order, and our company will provide specialized customization.

Main features

◆ Small in size and easy to install;

◆ Simple structure and convenient operation and maintenance;

◆ Large braking torque;

◆ High measurement accuracy;

◆ Stable and reliable operation;

The photoelectric speed sensor realizes high-precision instantaneous rotational speed measurement.

◆ Fast response speed, suitable for dynamic tests.

This type of test bench is usually composed of a hydraulic system, an electrical system, a motion control system and a data acquisition system, etc.

The testing process can be manually or automatically loaded. The test results can be generated into customized test reports, curve charts, etc. The process data can be generated into Word, Excel or PDF format files, and the data can be saved, edited, printed, etc. The interface of the test system is simple and clean, and it is convenient to upgrade and maintain. The company offers free training for operators and provides guidance on usage and maintenance.

Specific test items can be negotiated or customized by both parties. For technical support, please call 400-111-3688.
