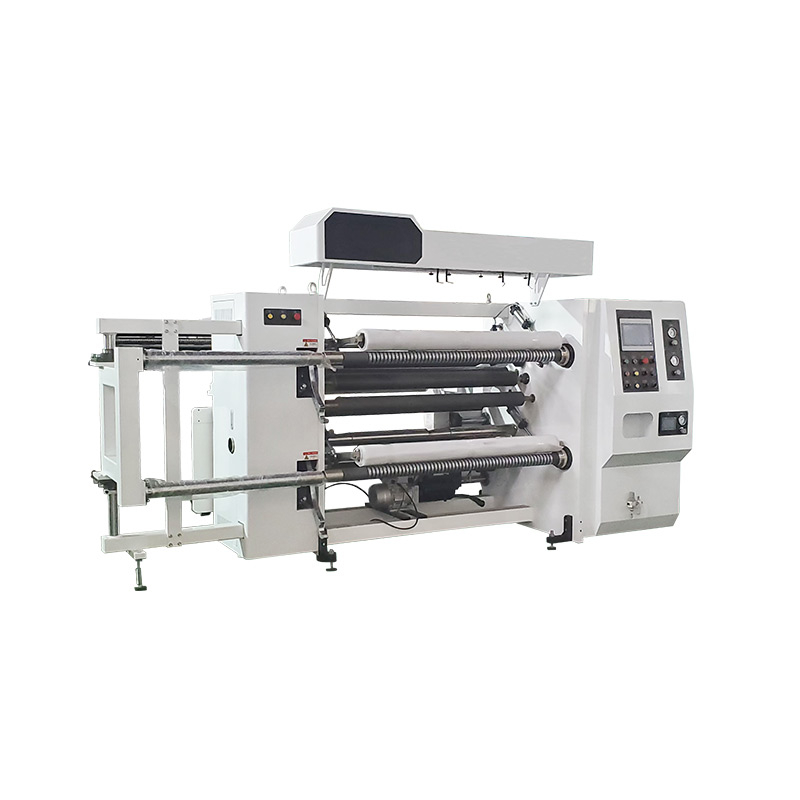

High-Speed Slitting Machine

A high-speed slitting machine is an industrial device that can precisely and at high speed cut wide roll materials (such as paper, film, metal foil, composite materials, etc.) along their length into multiple narrow rolls. It is a key post-processing equipment in the coil processing industry, directly determining the quality of the final product and production efficiency.

Core technologies and features

High speed and high efficiency: The design speed is extremely high, which can significantly increase production capacity and reduce unit production costs.

1. High-precision slitting

Split width accuracy: The knife seat driven by high-precision lead screws or linear motors can control the slitting width error within ±0.1mm or even less.

Edge quality: Sharp tools and a stable system ensure smooth edges, free of burrs and dust.

2. Intelligent tension control

This is the soul of the high-speed slitter. The system adopts a closed-loop tension sensor to achieve automatic tension control throughout the entire process from unwinding, pulling to rewinding. It can also use conical tension control to ensure that the material coil is consistent in tightness from the inside out, preventing "chrysanthemum patterns" and "star-shaped" wrinkles.

3. Automation and Intelligence

It is equipped with functions such as automatic roll changing, automatic adhesive application, automatic unloading (for high-end models), storage and retrieval of process parameters, production statistics, remote monitoring and maintenance.
