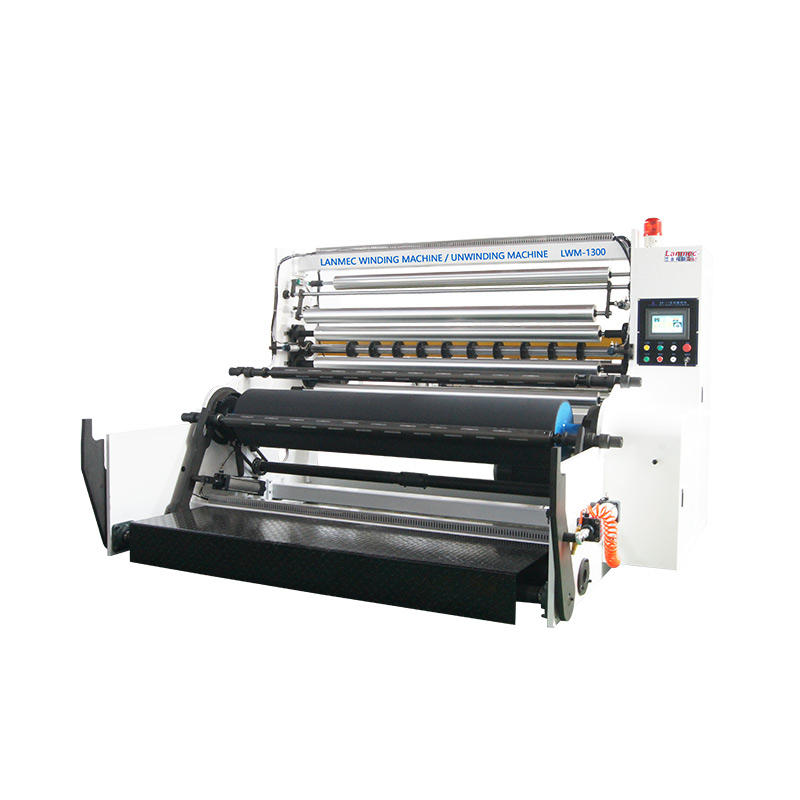

Winding Machine

The winding machine is suitable for the winding of non-woven fabrics, meltblown fabrics and films. It can achieve automatic roll changing without stopping the machine, online slitting, etc. Automatic cutting can be equipped with flying knives or bayonets.

According to their degree of automation and control methods, they are mainly classified into the following categories:

1. Manual winding machine

Youdaoplaceholder0 Description: The most basic model, the spindle rotation is usually accomplished by hand crank, and the wiring is manually controlled by hand.

Features: simple structure, low cost, low efficiency, and accuracy completely dependent on the operator's skills.

Youdaoplaceholder3 Applications: maintenance, DIY, small batch sample making, teaching demonstration.

2. Semi-automatic winding machine

Youdaoplaceholder0 description: The main shaft is driven by the motor and rotates automatically for counting; However, the wiring actions (such as layer changing and displacement) still require manual intervention.

Features: It is more efficient than manual operation and reduces some labor intensity, but there are still limitations in terms of precision and degree of automation.

Youdaoplaceholder3 Application: Some simple coils with low requirements for flat cables or small-batch production.

3. Fully automatic winding machine

Youdaoplaceholder0 Description: Mainstream of modern industry. All the actions of the spindle winding and wire layout are automatically completed by using a numerical control system (CNC) or PLC (Programmable Logic Controller).

Features: High precision: Precise control of the number of winding turns and the position of the wire arrangement.

High efficiency: High-speed operation, capable of continuous work.

"High consistency: Program control ensures consistent quality for each product."

Rich functions: Multiple winding modes can be set (such as close winding, sparse winding, and parallel winding), automatic stop, data storage, etc.

Youdaoplaceholder0 Application: Mass production of various transformers, inductors, motor windings, etc.
