Drilling Rig Drill Pipe Test Bench

Quantity:
Availability:





Inquire Add to Basket

Product Description

Model	Rated torque(N•m)	Excitation coil		Allowable rotational speed(r/min)	Slip power（KW）	Overall dimensions		Shaft connection dimensions				Base support dimensions							冷却方式
Model	Rated torque(N•m)	Voltage(V)	Current(A)	Allowable rotational speed(r/min)	Slip power（KW）	H	L	d(h7)	b(p7)	L1	L2	L3	L4	L5	L6	H1	d1	h	冷却方式
FZ2.5.J	2.5	24	0.4	1500	0.03	110	88	10	3	20	9	50	68	100	120	60	7	12	自冷
FZ5.J	5	24	0.5	1500	0.06	138	94	12	4	25	10	50	68	120	140	75	7	12	自冷
FZ10.J	10	24	0.6	1500	0.12/0.8	166	103	14	5	25	7	60	85	120	150	90	10	12	自冷/单水冷
FZ25.J	25	24	0.8	1500	0.2/1.2	196	115	20	6	36	5	70	96	150	180	110	12	15
FZ50.J	50	24	1.0	1500	0.3/2	240	140	25	8	42	11	80	105	180	210	130	12	16
FZ100.J/Y	100	24	1.2	1500	3/5	284	249	30	8	58	11	100	130	250	290	155	12	18	单/双水冷
FZ200.J/Y	200	24	1.8	1000	4/8	329	260	35	10	58	10	120	165	280	330	180	15	22
FZ400.J/Y	400	24	2.5	1000	5/12	400	313	45	14	82	14	130	180	330	390	215	15	22
FZ630.J/Y	630	36	2.5	750	15	441	374	60	18	105	20	150	210	410	480	240	19	30	双水冷
FZ1000.J/Y	1000	36	2.5	750	20	523	417	70	20	105	35	160	210	470	540	280	19	35
FZ1500.J/Y	1500	36	3.0	750	25	556	480	75	20	105	70	160	210	470	540	300	19	40
FZ2000.J/Y	2000	36	3.0	500	30	619	486	80	22	130	56	170	240	580	660	330	24	40
FZ5000.J/Y	5000	36	3.5	400	50	824	576	90	25	140	13	320	388	600	700	430	24	50
FZ10000.J/Y	10000	36	4.0	300	65	1126	651	120	32	160	18	360	450	900	1030	600	28	88
FZ20000.J/Y	20000	48	5.0	300	90	1205	916	140	36	180	45	480	560	950	1100	650	34	100
FZ30000.J/Y	30000	90	4.0	300	132	1205	1271	160	40	200	194	见图	690	1050	1180	650	34	120
FZ50000.J/Y	50000	90	5.0	250	160	1298	1965	180	45	250	549	见图	690	1050	1180	700	34	120

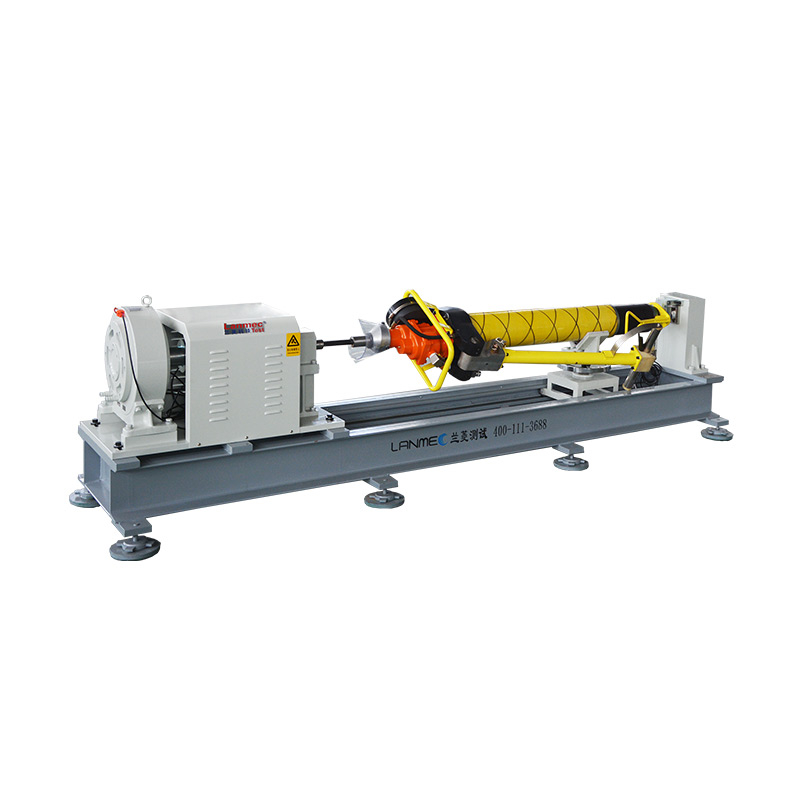

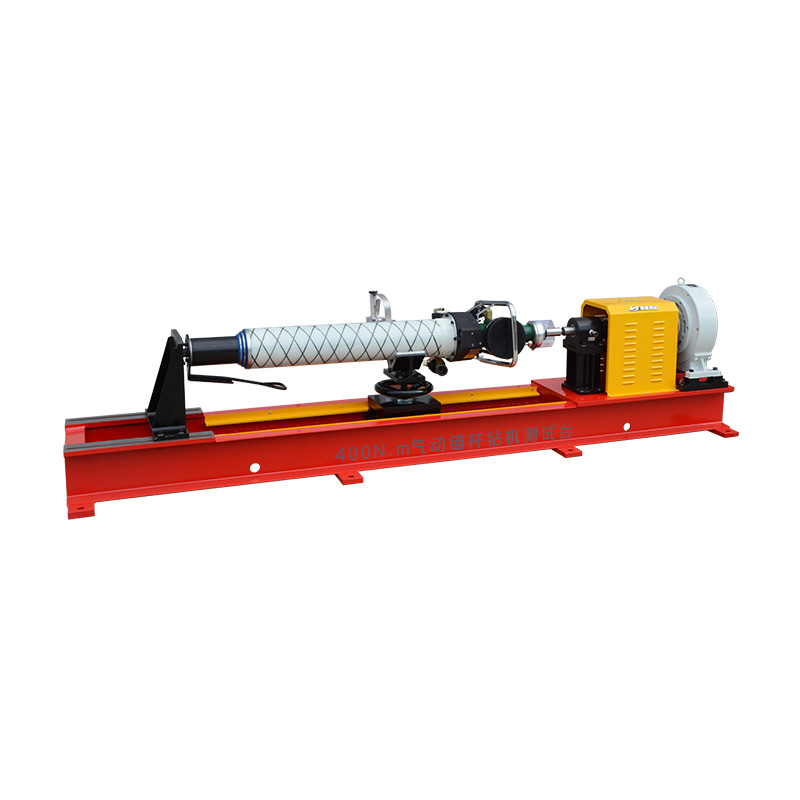

The comprehensive performance test bench for drilling RIGS is mainly used to test the input (electric, hydraulic, and pneumatic) power of drilling RIGS and drill pipes. Output torque, output speed, output mechanical power; Efficiency; Linear stroke Push-pull force, etc. It can conduct type tests, life durability tests, etc., simulate the actual operating conditions of drilling RIGS, evaluate the comprehensive performance of drilling RIGS and drill pipes, and provide accurate parameter basis for the research and development, production, maintenance and on-site application of drilling RIGS and drill pipes. The comprehensive performance test bench for drilling RIGS can test various types of electric, pneumatic and hydraulic drilling RIGS, drill pipes, etc.

This type of test bench is mainly composed of the drilling rig under test, drill pipes, torque and speed sensors (force sensors, displacement sensors, Angle sensors, etc.), simulated loads, installation platforms, connecting fixtures, measurement and control systems (instruments, software, etc.), electrical control systems, etc.

The testing process can be manually or automatically loaded. The test results can be generated into customized test reports, curve charts, etc. The process data can be generated into Word, Excel or PDF format files, and the data can be saved, edited, printed, etc. The interface of the test system is simple and clean, and it is convenient to upgrade and maintain. The company offers free training for operators and provides guidance on usage and maintenance.

Users can select test items according to specific requirements:

Efficiency test

Linear stroke test

◇ Life durability test

Specific test items can be negotiated or customized by both parties. For technical support, please call 400-111-3688.

Lanling Technology's various test benches, dynamometers and other customers are spread across aerospace, aviation, shipping, weaponry, petroleum, scientific research institutions, colleges and universities, testing agencies, etc. Their products are also exported to the United States, Germany, Italy, Turkey, Chile, India and other countries. Welcome to call for inquiries!

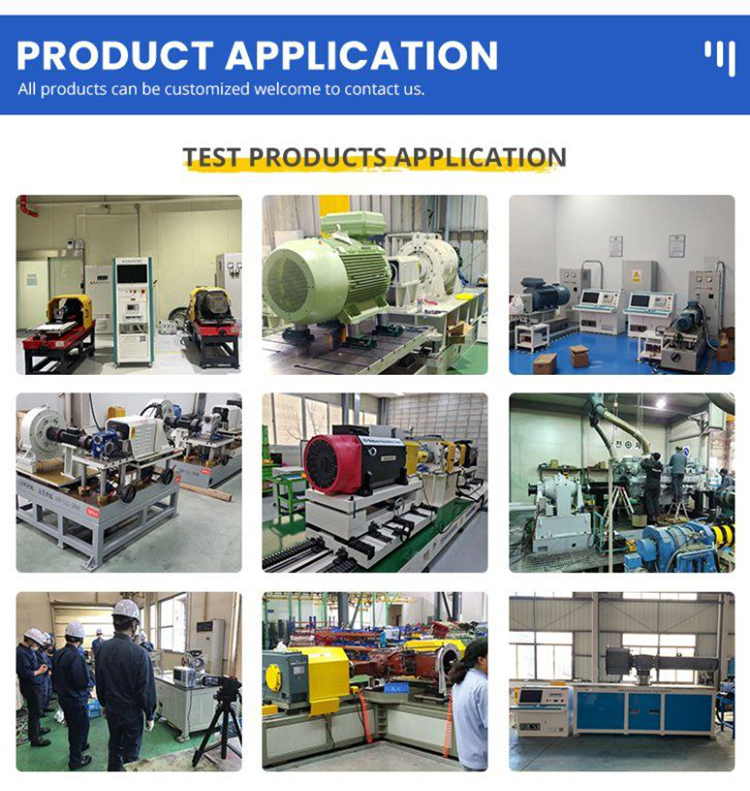

Application scenarios of test bench equipment
