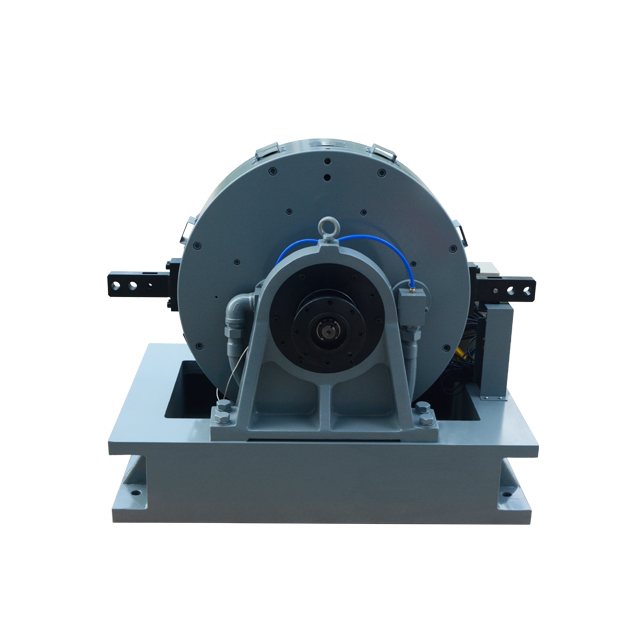

The DW series disc eddy current dynamometer is a dynamometer that adds a device for measuring torque and speed to the body of the DWZ series disc eddy current brake. It is mainly used as a testing instrument to measure the mechanical characteristics of power, especially in small and medium power and low-power power loading tests.

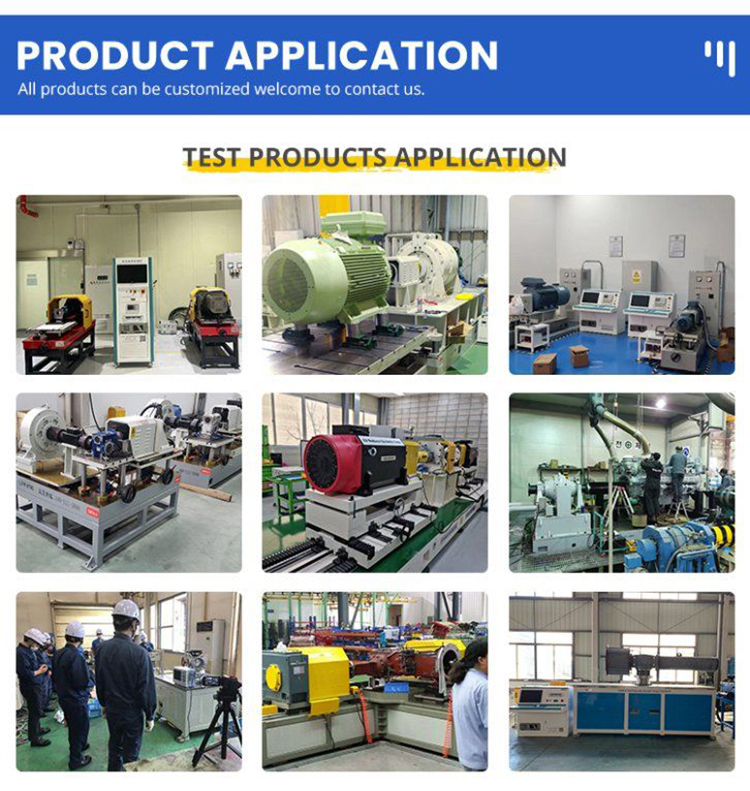

DW eddy current dynamometer is suitable for performance testing of small and medium-sized power motors, automobiles, internal combustion engines, gas turbines, water turbines, engineering machinery, forestry, mining, oil drilling and production machinery, and has a wide range of applications.

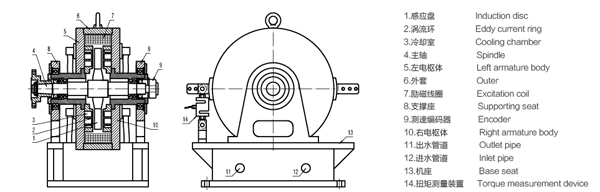

And when the induction disk of the DW eddy current dynamometer rotates, the air gap magnetic density undergoes periodic changes, inducing eddy currents due to the coupling effect of "eddy currents" and magnetic fields.
DW eddy current dynamometer Main technical indicators
Eddy current brake/dynamometer | Rated absorption power | Rated torque | Rated speed | Max speed | Moment of inertia | Max excitation voltage | Max excitation current | Cooling water pressure | Cooling water flow rate (L/min) |
DWZ/DW-0.75 | 0.75 | 5 | 2000-2600 | 16000 | 0.002 | 80 | 3 | 0.1~0.3 | 1 |
DWZ/DW-3 | 3 | 10 | 2000-2600 | 14000 | 0.003 | 80 | 3 | 0.1~0.3 | 2 |
DWZ/DW-6 | 6 | 25 | 2000-2600 | 14000 | 0.003 | 80 | 3 | 0.1~0.3 | 3 |
DWZ/DW-10 | 10 | 50 | 2000-2600 | 13000 | 0.01 | 80 | 3 | 0.1~0.3 | 4.5 |
DWZ/DW-16 | 16 | 70 | 2000-2600 | 13000 | 0.02 | 80 | 3.5 | 0.1~0.3 | 6.5 |
DWZ/DW-25 | 25 | 120 | 2000-2600 | 11000 | 0.05 | 80 | 3.5 | 0.1~0.3 | 15 |
DWZ/DW-40 | 40 | 160 | 2000-2600 | 10000 | 0.1 | 90 | 4 | 0.1~0.3 | 25 |
DWZ/DW-63 | 63 | 250 | 2000-2600 | 9000 | 0.18 | 90 | 4 | 0.1~0.3 | 45 |
DWZ/DW-100 | 100 | 400 | 2000-2600 | 8500 | 0.32 | 120 | 4 | 0.1~0.3 | 60 |
DWZ/DW-160 | 160 | 600 | 2000-2600 | 8000 | 0.52 | 120 | 5 | 0.1~0.3 | 100 |
DWZ/DW-250 | 250 | 1100 | 2000-2600 | 7000 | 1.8 | 150 | 5 | 0.2~0.4 | 180 |
DWZ/DW-300 | 300 | 1600 | 2000-2600 | 6000 | 2.7 | 150 | 5 | 0.2~0.4 | 210 |
DWZ/DW-400 | 400 | 2200 | 2000-2600 | 5000 | 3.6 | 180 | 10 | 0.2~0.4 | 300 |
DWZ/DW-630 | 630 | 3600 | 2000-2600 | 5000 | 5.3 | 180 | 10 | 0.2~0.4 | 450 |
