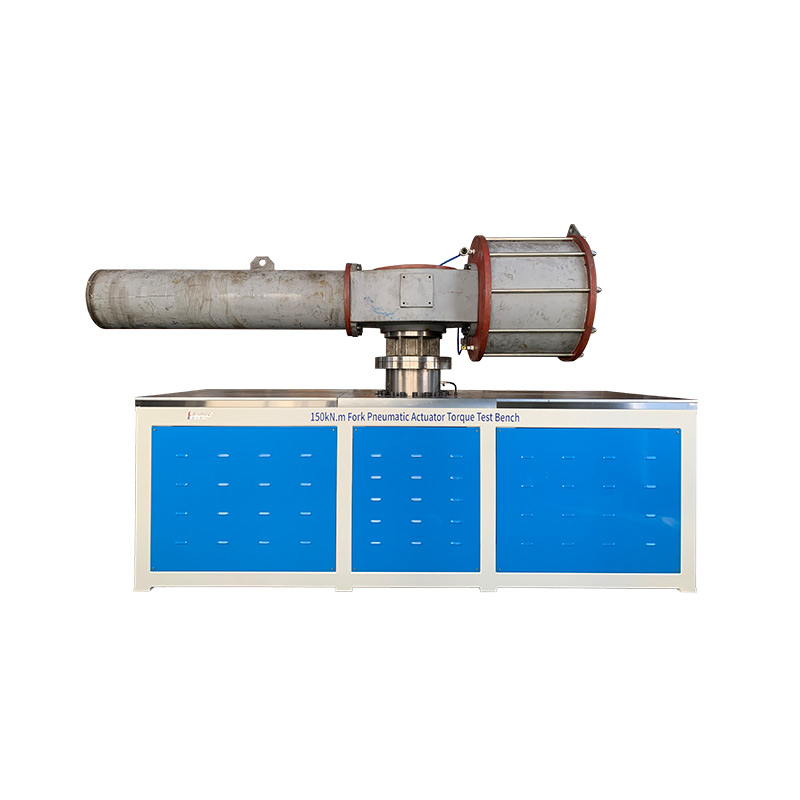

150kN.m Fork-type Actuator Test Bench

Actuator test benches can be classified according to the type of power source as: electric actuator test benches, pneumatic actuator test benches, hydraulic actuator test benches, and fork-type pneumatic actuator test benches. Actuator test benches can be classified according to the type of motion mode as: angular stroke, multi-turn, and linear stroke actuator test benches. This test system is composed of a loading device, a torque and speed sensor, a test bench, an actuator installation fixture, a detection cabinet, etc. It can change the load of the actuator under test at will and directly measure the output torque, speed, power, Angle, pressure and other parameters of the actuator under the load endurance state.

Function

(1) The actuator can be simulated for loading, and the loading torque is continuously adjustable.

(2) Detect the forward and reverse output torque of the actuator of the servo motor at different rotational speeds.

(3) Test data can be stored.

(4) Test curves can be automatically and continuously stored or manually stored as per the user's wishes.

(5) It has a memory function for setting various parameters, and you only need to input them once.

(6) It has the function of replaying historical data curves.

(7) The test data and curves can be exported, and the test results can be printed in data and curves through a printer.

(8) The entire function of the system features dual operations of menus and shortcut keys.

(9) It runs in the WINDOWS environment, with a vivid and beautiful interface.

(10) The operation is simple and the maintenance is convenient.

The application scope of the electric actuator test bench: angular stroke, multi-turn, linear stroke electric, pneumatic and hydraulic actuators

Power range: 5-600KN.m, 0-50 T. Function: It can measure current, voltage, power factor and electric power. Torque, rotational speed, power; Efficiency; Push-pull force; Parameters such as rotation Angle.

For specific test items, both parties will negotiate. The technical agreement shall prevail. For technical support, please call 400-111-3688.

Representative clients: Yangzhou Electric Power Repair and Manufacturing Factory, Changzhou Power Station Auxiliary Machinery, Tian Er Tong, Yangzhou Hengchun, Changzhou Lanling, Bernard, Nanjing Keyuan, Shanghai Qizhong, Wenzhou Yuezhong, etc.
