The transition from legacy motor manufacturing to high-efficiency electrification has eliminated the margin for error in motor validation. Whether engineering electric vehicles, industrial robotics, or aerospace actuators, manufacturers can no longer rely on simple pass/fail metrics. Procurement and R&D engineers face a fragmented market of testing solutions. Selecting a system requires balancing ultra-precise data acquisition with physical changeover efficiency, safety compliance, and Total Cost of Ownership. A misaligned testing rig causes production bottlenecks and limits data resolution during critical prototyping phases. This guide deconstructs the architecture of modern industrial motor test benches. It establishes a framework for evaluating hardware and data acquisition capabilities. We outline the exact specifications required to align test infrastructure with operational mandates, from R&D efficiency mapping to rapid End-of-Line quality control. You will learn how to balance upfront capital expenditure against long-term operational throughput effectively.
Modularity Dictates TCO: Modern test benches utilizing co-axial slide-rail systems and T-slot foundations drastically reduce changeover downtime compared to fixed-mount traditional dynamometers.
Four-Quadrant Capability is Non-Negotiable for R&D: Advanced testing requires seamless transitions between motoring and regenerating states to generate accurate Efficiency MAPs across varying operational states.
Safety Protocol Integration: Heavy-duty applications require hardware-level Safe Torque Off (STO) and adherence to IEC 61010 standards to mitigate catastrophic failures during high-speed commissioning.
Static vs. Dynamic Scope: A comprehensive testing strategy integrates dynamic load testing with predictive static diagnostics (e.g., IEEE 522 Surge Testing, ANSI/EASA standards) to evaluate both immediate performance and long-term insulation health.
An industrial motor performance test bench operates as an integrated hardware and software environment. It simulates real-world load conditions while capturing high-frequency response data. The baseline function involves applying a controlled mechanical load to a rotating shaft. Operators then measure the electrical input alongside the mechanical output in real time. This defines the operational limits of the connected drive system under various stress conditions.
The core calculation governing this environment relies on the basic mechanical power equation. Mechanical Power (measured in watts) equals Torque (in Newton-meters) multiplied by Rotational Speed (in radians per second). Engineers calculate the mechanical transmission efficiency by dividing the physical output energy by the electrical input energy. For three-phase AC motors, input power calculations require measuring the root-mean-square voltage, current, and the power factor across all three phases simultaneously.
Legacy testing often relied on a black-box methodology. Engineers only measured the raw input current from the grid and the final output torque at the shaft. They remained blind to internal thermal behaviors, phase imbalances, and magnetic losses. Modern data acquisition (DAQ) environments provide complete transparency. They sample data at frequencies exceeding 50 kHz to expose hidden inefficiencies within the motor controller, stator iron, and physical copper windings.
Testing infrastructure scales aggressively based on torque requirements, thermal loads, and application footprints. Selecting the right architectural scale prevents unnecessary capital expenditure. Benches generally fall into three distinct categories based on their load absorption capabilities.
| System Category | Typical Power Range | Primary Load Simulator | Core Engineering Application |
Small / Portable Desktop | 1 kW to 30 kW | Magnetic Powder Brake, Hysteresis Brake | Algorithm validation, controller firmware testing, educational labs, and low-torque servo calibration. |
Medium R&D Universal | 30 kW to 250 kW | Eddy Current Dynamometer, AC Regenerative Drive | Automotive component prototyping, continuous duty cycle testing, and thermal saturation mapping. |
Large Heavy Industry | 250 kW to 5+ MW | High-Power AC Regenerative Drive, Water Brake | Locomotive traction testing, marine propulsion, aerospace turbines, and grid-tied generator compliance. |
A high-fidelity testing environment relies on several synchronized hardware subsystems working in unison. A failure in one subsystem compromises the integrity of the entire data array.
Load Simulators and Dynamometers: The load simulator creates the physical resistance the motor must overcome. Magnetic powder brakes perform excellently for low-RPM, high-torque applications because they provide full holding torque at zero speed. Conversely, AC regenerative drives provide the high-speed dynamic cycling necessary for electric vehicle testing. Regenerative drives absorb the kinetic energy and convert it back into electrical current, feeding it into the facility grid to reduce long-term electricity costs.
Torque Transducers and Encoders: Accurate data relies on high-resolution sensors. Strain-gauge torque sensors mount directly in line with the rotating shaft. They measure the micro-deformations in the metal caused by torsional force. High-resolution optical encoders track the precise rotor position and speed, often outputting 2048 pulses per revolution (PPR). These elements form the immediate sensory backbone of the DAQ system.
Base Mounts and Alignment: Micro-misalignments destroy data integrity. They introduce parasitic friction and artificial vibration into the readings. Modern systems utilize heavy T-slot cast-iron or aluminum plates. They feature independent co-axial slide blocks equipped with laser alignment tools. This rigid foundation eliminates misalignment-induced vibration, prevents bearing damage, and prolongs the operational lifespan of the torque transducer.
Motor Controllers and Power Supply: Regulated DC power supplies deliver clean, stable voltage to the system. Sophisticated inverters capable of Field-Oriented Control (FOC) manage the precise phase currents required to drive the device under test. They allow engineers to manipulate the magnetic flux independently of the torque-producing current.
Dynamic testing evaluates the motor while it actively rotates against a simulated load. This phase provides the most accurate reflection of real-world operational performance across varying environments.
Speed and Torque Validation: Encoders validate speed retention under sudden load spikes. Torque transducers quantify the exact rotational force. Engineers monitor the data stream for torque ripple, which indicates problematic cogging torque or uneven magnetic flux distribution within the stator.
Efficiency and Thermal Behavior: DAQ systems calculate efficiency metrics continuously across the load spectrum. Thermography integration uses embedded PT100 sensors and infrared cameras to identify stator hot spots. Operators evaluate heat sink dissipation rates directly under maximum continuous ratings to validate the cooling jacket design.
Vibration and Noise Profiling: Tri-axial piezoelectric accelerometers track mechanical movement in mm/s or g-force. Sound level meters record dB output within anechoic chambers. This detects premature bearing wear, shaft misalignment, or dangerous electrical phase imbalances. Engineers use Fast Fourier Transform (FFT) analysis to isolate specific noise frequencies.
Controller and Sensor Resilience: Robustness testing pushes firmware fault tolerance. It measures encoder latency under high-vibration conditions. Engineers also track connector aging and insulation integrity under repetitive high-torque duty cycles to predict field failure rates.
Static testing evaluates motor health without rotating the shaft. Engineers use it as a predictive maintenance tool to assess insulation degradation before applying dynamic mechanical loads.
Hipot Test (Dielectric Strength): This procedure stresses the internal insulation system. Operators apply high-voltage direct current, typically 1000V plus twice the motor's rated operating voltage, for exactly 60 seconds. The system monitors for sudden current spikes that indicate a dielectric breakdown.
Surge Testing: Following IEEE 522 standards, surge testing identifies early turn-to-turn shorts within individual coil windings. It injects high-voltage, high-frequency pulses into the coils. The software compares the resulting damped sinusoidal wave against a master reference curve to detect microscopic insulation weaknesses.
Megger and Polarization Index (PI): Megohmmeters measure leakage current resistance across the insulation. Tracking this megaohm value over time predicts the rate of insulation decay caused by thermal cycling. Engineers calculate the PI by dividing the 10-minute resistance value by the 1-minute resistance value to gauge overall insulation cleanliness.
Core Loss Tests: These tests evaluate circuit resistance under high alternating current flows. They identify magnetic core damage per ANSI/EASA AR100 guidelines. The results dictate whether a damaged motor requires a complete stator rewind or total replacement.
Basic EoL setups only test a motor spinning forward under a static load. Advanced R&D benches execute true 4-quadrant operation, detecting and transitioning between five distinct operational states automatically.
Motoring Forward or Reverse: The motor acts conventionally, consuming electrical power from the grid to generate mechanical force at the shaft.
Generating Forward or Reverse: The simulator drives the motor shaft mechanically. The motor captures this kinetic momentum and acts as a generator, feeding regenerative power back to the grid.
Overcoming Internal Friction: The motor requires a small amount of external drive purely to surpass its own bearing friction and internal windage losses.
Idling State: The motor spins continuously with zero applied mechanical load, allowing engineers to measure baseline no-load current draw.
Wiring Error Alarm: The DAQ monitors energy conservation. If it flags massive amounts of dissipated power as unnatural heat loss, it triggers a phase connection error alarm.
Engineers utilize these multi-quadrant states to generate a comprehensive Efficiency Map. The software sweeps the motor through a programmed matrix of specific torque and speed points. A standard high-resolution map might test 100 distinct speed variables against 100 torque variables, resulting in 10,000 unique data points. The DAQ plots these points to create a topographical color map showing exactly where the motor operates at peak electrical efficiency.
Electric vehicle and aerospace sectors operate at the absolute edge of motor technology. These benches must handle ultra-high rotational speeds, frequently reaching 165,000 to 180,000 RPM for modern EV traction motors. They require dynamic load response times under 10 milliseconds to accurately simulate sudden traction loss on icy roads. Electrical architectures routinely exceed 800V. The testing focus centers heavily on granular efficiency mapping, violent regenerative braking stress cycles, and extreme environmental stress testing using integrated thermal chambers capable of dropping to -40°C.
Heavy industries demand testing environments tailored for fluid dynamics, massive torque loads, and continuous physical abuse. A specialized Hydraulic Motor Test Bench evaluates volumetric efficiency, mechanical output, and internal fluid leakage under extreme operational fluid pressures exceeding 350 bar. These systems focus heavily on low-speed high-torque (LSHT) endurance profiling. When testing construction excavators or mining drills, engineers frequently utilize a High-power Hydraulic Dynamometer to absorb the immense kinetic energy generated by the components without destroying the laboratory infrastructure.

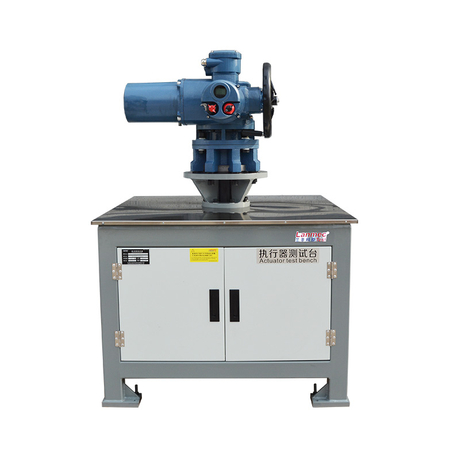

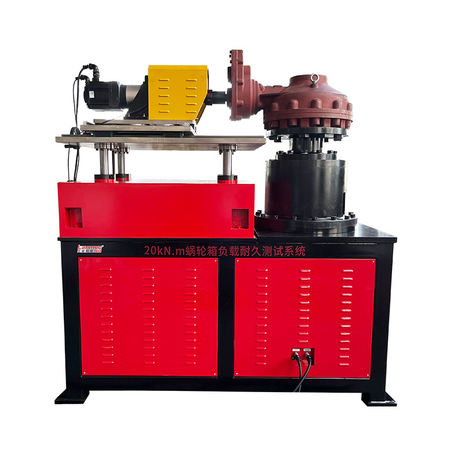

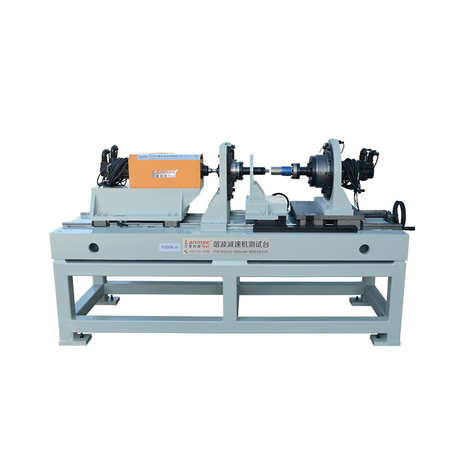

Automation relies on absolute mechanical precision rather than raw horsepower. Testing delicate robotic joints requires specific architectural considerations to capture micro-movements. A Robot Joint Module Test Bench prioritizes absolute zero-backlash measurement. It tracks holding torque accuracy and high-frequency reversing loads to simulate the erratic, sudden movements of a 6-axis robotic arm in a welding assembly line. Similarly, evaluating heavy lifting mechanisms requires specific focus on safety fail-safes. A Fork-type Actuator Test Bench or a dedicated Worm Gearbox Test Bench evaluates the critical self-locking capabilities of the gears. Engineers use these setups to measure mechanical friction losses and peak load durability to ensure a suspended load will not drop if the facility loses electrical power.
Consumer appliances and renewable energy generation follow strict international energy rating mandates. Benches designed for HVAC compressors or washing machine motors focus on continuous power quality monitoring. They test for strict consumer-grade noise limitations to ensure household acoustic compliance. Conversely, wind turbine generators undergo massive, unpredictable load variability testing. The dyno simulates erratic wind gusts and severe weather patterns to ensure the generator provides a clean, consistent sine wave output to the electrical grid despite fluctuating mechanical input.
Testing priorities shift dramatically depending on the production phase. The table below outlines the operational differences between deep prototyping environments and high-volume final assembly lines.
| Operational Criteria | R&D Performance Testing | End-of-Line (EoL) Validation |
Primary Objective | Deep analytics, thermal mapping, failure limit testing. | High-throughput validation, rapid pass/fail compliance checks. |
Test Duration | Hours to weeks (continuous duty cycle endurance). | 10 to 60 seconds per manufactured unit. |
Data Granularity | Infrared thermal arrays, high-frequency torque ripple data. | Basic insulation pass/fail, no-load validation, current draw limits. |
Hardware Setup | Highly modular T-slots, frequent manual mechanical changeovers. | Automated pneumatic fixtures, robotic loading and unloading. |
High-voltage motors present severe kinetic and electrical hazards to laboratory personnel. Hardware-level Safe Torque Off (STO) serves as the primary defense mechanism. STO logic decouples motor power immediately without disabling the underlying controller logic or crashing the DAQ software. Operators trigger STO via hardwired emergency stop buttons or automated safety limit switches.
Advanced rigs utilize triple-logic safety configurations to prevent catastrophic failure. They combine 24VDC self-holding relays with AC earth leakage breakers. Physical interlocks provide the final barrier between the operator and the kinetic hazard. Benches often feature 5mm polycarbonate enclosures fitted with 24V dual extraction fans. These fans evacuate hazardous heat and ozone buildup during enclosed, long-duration thermal testing.
Engineers must follow a strict pre-start checklist before initiating any test sequence. You must set overcurrent limits properly in the software interface, generally at 1.2 p.u. for Permanent Magnet Synchronous Motors. Confirm the mechanical brake release entirely to prevent locked-rotor burnout. Finally, ensure perfect horizontal anti-vibration leveling and limit the DC inrush current to protect the testing facility's electrical grid from sudden voltage sags.
Testing execution requires a systematic, phased approach to prevent hardware damage, ensure data consistency, and establish proper baselines. Engineers utilize a standard three-step workflow.
Phase 1: Open-Loop No-Load Assessment. The operator powers the motor without engaging the dynamometer load. This establishes the baseline idle current and measures the inherent bearing and windage friction losses. You must validate sensor directionality to ensure the high-resolution encoders read positive RPM correctly. This phase also tests basic Voltage/Frequency (V/f) control algorithms before applying physical mechanical resistance.
Phase 2: Progressive Load Analysis. The dynamometer steps up mechanical resistance dynamically. Engineers use Field-Oriented Control (FOC) to manage the direct and quadrature phase currents. This step involves precise rotor position calibration to calculate encoder offsets. The software maps peak torque outputs against electrical current draw under increasingly heavy strain, stopping just short of thermal breakdown.
Phase 3: Steady-State Thermal Examination. The motor operates continuously at its designated Maximum Continuous Rating (MCR) for one to two hours. Infrared thermal monitoring systems track the heat dissipation across the stator, rotor, and outer casing. This confirms the motor's internal cooling jacket or external fan design functions correctly under prolonged physical stress without exceeding Class H insulation temperature limits.
Traditional physical test rigs provide unmatched data accuracy, but they present several operational constraints. They require high upfront capital expenditure and consume significant facility floorspace. Integrating a massive dyno rig often disrupts existing plant floor layouts and requires reinforced concrete foundations.
Testing active equipment on a physical rig requires decoupling motors from the active production process line. Moving the asset into a laboratory environment creates expensive manufacturing downtime. Furthermore, pristine laboratory DC power supplies cannot perfectly replicate facility-specific power quality issues. Harmonics, voltage unbalance, and dirty grid power affect real-world motor efficiency, but physical laboratory rigs often mask these highly variable environmental factors.
Electrical Signature Analysis (ESA) offers a non-intrusive alternative to physical dynamometers for operational maintenance. This method uses advanced power quality analyzers to derive mechanical load data directly from three-phase electrical inputs. You do not need a physical strain-gauge torque sensor or a decoupled motor shaft.
The ESA algorithm extracts rotor slot harmonics from the incoming electrical current waveform. The software cross-references this waveform data with NEMA or IEC nameplate standards entered by the operator. The analyzer calculates real-time shaft torque, RPM, and mechanical efficiency purely in situ. This allows reliability engineers to trend bearing degradation and rotor bar faults without ever stopping the production line.
When procuring a bench, evaluate the physical tooling architecture first. A poor mechanical design destroys operational efficiency and limits testing throughput. Avoid proprietary mounting plates that restrict flexibility to a single motor frame size. Look for a universal slide-rail system instead. A well-designed co-axial rail allows a single operator to swap motors, adjust the coupling, and realign the transducers in under 15 minutes.
Assess the software dashboard rigorously. A closed software ecosystem traps your engineering data and prevents custom analysis. Ensure the DAQ system automatically exports raw data arrays into non-proprietary formats suitable for third-party analysis tools like Python, MATLAB, or LabVIEW.
Check the hardware resolution parameters carefully. Look for wide torque measurement ranges capable of maintaining an accuracy of ±0.5% or better across the entire spectrum. High resolution at the low end of the torque curve prevents the need to purchase multiple overlapping transducers for different motor variants.
The initial CapEx purchase price rarely reflects the Total Cost of Ownership. You must factor in annual factory calibration costs for the precision torque transducers to maintain ISO compliance. Evaluate the secondary cooling infrastructure required by the dynamometer itself. Determine whether your facility can support an air-cooled eddy current setup, or if you need to install expensive industrial water-cooling plumbing and chillers to manage the heat rejection.
Finally, assess facility infrastructure upgrades. High-power regenerative test benches dump massive electrical loads back into the local grid. Your facility electrical infrastructure must possess the transformer capacity to absorb these regenerative spikes without tripping facility breakers or damaging sensitive electronics on the same circuit.
Define your required 4-quadrant testing parameters based on your specific engineering needs, ensuring your software maps peak torque outputs accurately.
Audit your existing floor space, water-cooling infrastructure, and electrical grid capacity to confirm compatibility with regenerative load simulators.
Request Proof of Concept testing on a sample motor from the manufacturer to validate sensor resolution before signing a Request for Quotation.
Verify that the data acquisition software automatically exports raw array data into your existing analytical stack without requiring proprietary file conversions.
A: A passive load bench uses physical resistance, such as magnetic powder brakes, to absorb energy and convert it to heat. An active dynamometer uses AC regenerative drives to simulate loads dynamically. It can both drive the motor and act as a generator, feeding the tested energy back into the electrical grid. This setup significantly reduces electricity consumption during long-term continuous duty cycle testing.
A: The data acquisition system continuously measures input electrical power via high-frequency voltage and current sensors. Simultaneously, it measures mechanical output power by multiplying the data from the inline torque transducer and the optical speed encoder. Efficiency is calculated instantly by dividing the mechanical output wattage by the total electrical input wattage.
A: Electric vehicles do not just drive forward under load. They reverse, coast downhill, and utilize regenerative braking. A 4-quadrant mode tests all these states automatically. It seamlessly transitions between consuming electrical power and generating power, allowing automotive engineers to map thermal efficiency across the entire standardized driving cycle.
A: High-voltage rigs must comply with strict IEC 61010 laboratory standards. Requirements include hardware-level Safe Torque Off mechanisms, physical interlock enclosures made of shatterproof polycarbonate, 24VDC self-holding safety relays, and programmable overcurrent limits. They must feature hardwired emergency stop circuits that immediately decouple power without crashing the data logging software.
A: Yes, but it is severely over-engineered for basic servo testing. Robot joint benches focus heavily on detecting zero-backlash, minute friction losses, and holding torque accuracy during high-frequency directional reversals. Standard servo benches generally focus on continuous speed, basic torque retention, and thermal saturation, requiring far less mechanical rigidity.
A: Most manufacturers recommend recalibrating strain-gauge torque sensors annually to maintain an ISO-compliant accuracy of ±0.5%. However, harsh testing environments subject to extreme vibrations, frequent physical torque overloads, or massive temperature fluctuations may require biannual calibration checks to ensure the data integrity remains valid.
A: Dynamic testing measures mechanical output metrics like RPM, torque, and efficiency while the motor actively rotates under physical dynamometer resistance. Static diagnostic testing, such as Surge and Hipot, occurs while the motor is stationary. Static tests stress the electrical windings with high voltage to predict insulation failure and evaluate long-term electrical health.
