Classification and Distinctions of Precision Reducer Test Benches

Mechanical transmission failure carries exceptionally high stakes across modern industrial applications. In aerospace, heavy machinery, robotics, and electric vehicle manufacturing, a single unverified Speed Reducer can trigger catastrophic system failures. Such mechanical breakdowns often lead to costly product recalls, severe safety liabilities, and irreversible brand damage. Engineering and procurement teams face significant technical challenges when evaluating and sourcing appropriate testing equipment. Standard dynamometers simply cannot capture the micro-level transmission errors required for modern precision gearing. These minute kinematic deviations are measured in arcseconds, demanding highly specialized measurement architectures and rigorous environmental controls. This guide provides a definitive, decision-stage framework for evaluating advanced testing equipment. It classifies different test benches and details their critical architectural distinctions. Procurement teams will learn how to evaluate these complex systems based on technical fidelity, Total Cost of Ownership (TCO), and practical implementation realities.

• Application-Specific Matching: R&D and End-of-Line (EoL) test benches serve fundamentally different purposes; selecting the wrong classification leads to either data bottlenecks or unnecessary capital expenditure.

• Architectural Fidelity: High-end test benches mitigate inherent physical errors through advanced DAQ (Data Acquisition) systems, top-tier sensors (e.g., Heidenhain encoders), and hysteresis curve compensation.

• Comprehensive Testing Capabilities: A viable bench must accurately measure efficiency, transmission error, stiffness, and backlash across varying load and environmental conditions, maintaining a system repeatability of ≤ ±1%.

• TCO and ROI Drivers: Modern systems offset high initial costs through energy regeneration (feeding power back to the grid), modular fail-safes, and streamlined compliance with ISO/IATF standards.

The Strategic Role of the Reducer Test Bench in R&D and Production

Defining Success Criteria for Testing Equipment

The primary objective of a Reducer Test Bench is creating a highly controlled, repeatable environment. This environment evaluates the Device Under Test (DUT) functionally and environmentally. It achieves this without requiring full physical integration into the final consumer product. Engineers require isolation of the gear system to measure localized friction, elastic deformation, and component fatigue accurately. Modern manufacturing has shifted drastically away from basic pass/fail metrics. Today, predictive quality assurance relies on high-frequency data logging and continuous monitoring. Automated reporting provides actionable insights into mechanical wear, friction variations, and long-term performance degradation.

Success is defined by the equipment's ability to digitize physical mechanical phenomena. Systems must utilize advanced Fast Fourier Transform (FFT) analysis and order tracking to isolate specific gear meshing frequencies. Engineers use this highly granular data to predict lifespan and optimize gear tooth geometry before mass production begins. The test environment must replicate real-world torsional resonance and input ripple torque. Capturing data at sample rates exceeding 10 kHz ensures no transient dynamic event goes unrecorded. These capabilities transform the test bench from a simple verification tool into a core driver of product development.

R&D vs. End-of-Line (EoL) Classifications

R&D test benches focus heavily on prototype validation and design optimization. They execute extreme boundary testing, such as rotational bending fatigue and severe thermal shock evaluations. Engineers rely on these systems for granular performance insights during the product development phase. R&D equipment requires high versatility and physical modularity. This adaptability accommodates evolving Precision Speed Reducers over time. A single R&D unit might feature swappable torque flanges ranging from 50 Nm to 5000 Nm. It often integrates with specialized environmental chambers capable of cycling temperatures between -40°C and +120°C.

Conversely, EoL test benches operate directly at the end of the manufacturing line. They prioritize rapid cycle times, automated pass/fail logic, and high throughput. Seamless integration with factory Manufacturing Execution Systems (MES) is essential for EoL units. This digital integration ensures stringent quality assurance and component traceability prior to product shipment. To maximize production efficiency, a typical automated EoL testing sequence follows these precise steps:

• Automated loading and pneumatic clamping of the DUT into the testing fixture.

• Servo-driven spline alignment and automated coupling engagement to eliminate manual setup.

• Pre-test baseline measurements, checking for assembly binding or immediate high-friction drag.

• Execution of a rapid, multi-stage dynamic load cycle simulating peak operational stresses.

• Automated uncoupling, followed by immediate MES data push recording the unit's unique serial number.

Selecting the incorrect system classification severely impacts operations. Deploying an R&D bench on a production line creates massive throughput bottlenecks due to complex setup times. Using an EoL bench in a laboratory setting deprives engineers of the variable control needed for deep-dive failure analysis.

Classifications by DUT: Matching the Bench to Precision Speed Reducers

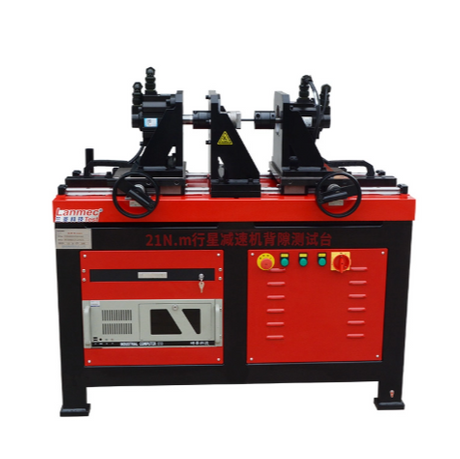

Harmonic Gear Reducer Test Bench Specifications

Harmonic drives see frequent deployment in robotics, aerospace, and advanced medical device applications. These applications demand extreme precision and absolute zero-backlash characteristics. A dedicated Harmonic Gear Reducer Test Bench measures torsional stiffness at single-digit transmission ratios. The testing architecture must isolate the dynamic behavior of the flexspline as it interacts with the wave generator and circular spline. Any misalignment in the testing rig will mask the actual kinematic performance of the drive. Required measurement tolerances for these systems are exceptionally strict. Angle precision must reach ±2 arcseconds to capture minute kinematic deviations effectively.

Torque precision must maintain ±0.1% Full Scale (FS) for large measurement ranges. For small ranges, the system must maintain ±0.2% FS to ensure complete data integrity. Measuring the unique lost motion profile of a harmonic drive requires bidirectional rotational scanning under incrementally applied loads. Capturing these micro-variations ensures robotic arms operate without jitter, settling time delays, or spatial positioning errors. The system must also quantify the internal ratcheting torque limit, identifying the exact threshold where the flexspline teeth slip against the circular spline.

RV (Rotary Vector) Reducer Testing Requirements

RV reducers are fundamental components within heavy industrial automation and large-scale, multi-axis robotics. They feature heavy-load capacities, high-rigidity structures, and exceptional shock resistance due to their cycloidal pinwheel mechanisms. Testing these robust components requires highly capable dynamic load simulation. Systems must toggle seamlessly between variable and constant load profiling during extended test cycles. The bench must replicate the severe emergency-stop (E-stop) scenarios typical in heavy robotics, subjecting the DUT to sudden, massive torsional impacts.

High-capacity torque measurement is an absolute necessity for RV applications. Custom industrial applications often demand torque capacities reaching up to 10,000 Nm or higher. The testing infrastructure must safely absorb, control, and measure these massive rotational forces without structural deformation. Finite Element Analysis (FEA) is often used to design the machine bed, ensuring the bench's own cast-iron or epoxy-granite foundation exhibits near-zero flexion under peak loads. Additionally, the system must precisely measure angular transmission error while the unit is subjected to 250% of its rated continuous torque.

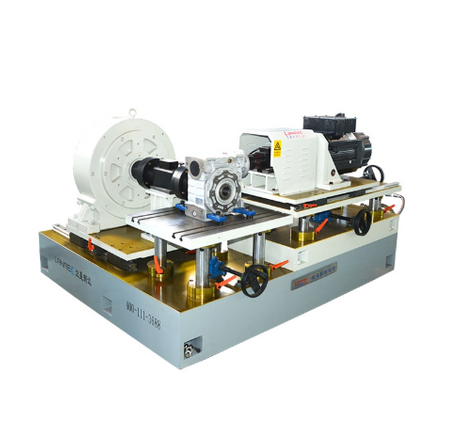

Worm Gear Reducer Test Bench Distinctions

Worm gears inherently generate more friction and heat than planetary or harmonic designs. This is due to the continuous sliding friction inherent in their perpendicular mechanical meshing process. The metallurgy involved, typically bronze worm wheels interfacing with hardened steel worms, requires specific lubrication viscosity mapping. Therefore, efficiency mapping and thermal dynamics are critical focus areas for equipment evaluation. A specialized Worm Gear Reducer Test Bench must provide exact ambient and fluid temperature control. Sensor accuracy of ±0.3°C is typically required to map thermal dissipation accurately across the gear housing.

Continuous temperature rise monitoring is mandatory during prolonged testing phases. These phases include extended no-load, partial-load, and full-load running tests until the unit reaches thermal equilibrium. Engineers must monitor the exact moment when oil film breakdown begins under high thermal loads, which leads to rapid bronze degradation. Tracking thermal equilibrium helps manufacturers specify appropriate synthetic lubrication and required external cooling mechanisms. The bench must also measure the precise back-driving torque, verifying the self-locking characteristics critical to lifting equipment and winches.

EV and Planetary Gearbox Testing

Electric vehicle testing encompasses both light-duty passenger and heavy-duty commercial applications. Light-duty passenger EVs use coaxial or offset axes designs. They require high-speed input simulations reaching up to 20,000 rpm to match modern electric motor outputs. At these extreme velocities, the test bench must monitor for centrifugal lubricant starvation and micro-pitting on planetary gear teeth. Heavy-duty applications include commercial transport vehicles and mining machinery. These massive systems operate at lower speeds but require continuous output torque simulations up to 20,000 Nm.

Noise, Vibration, and Harshness (NVH) evaluation is a critical metric for EV gearboxes. It directly impacts passenger comfort, as electric motors lack the masking noise of traditional internal combustion engines. Testing setups must integrate advanced accelerometers and microphones to track specific NVH order frequencies linked to gear meshing faults. Active oil and coolant temperature control systems must simulate cold-weather starts (-20°C) and extreme operational heat. They must also execute standard global drive cycle simulations, including NEDC, WLTP, FTP, and JC08, matching the exact transient torque requests of an electric drivetrain.

Architectural Distinctions: What Makes a High-Fidelity Test Bench?

Core Subsystems and Component Quality

High-fidelity test benches rely entirely on premium core subsystems and components. Actuators and drive systems require advanced four-quadrant servo control. Brands like ABB or Siemens provide the precise load application required for dynamic testing. They utilize Insulated-Gate Bipolar Transistor (IGBT) switching to maintain dynamic speed control with an impressive precision of ±0.1% FS. The mechanical alignment of the input and output drive shafts must maintain concentricity within micrometers to prevent parasitic radial loads from skewing data.

Sensors and DAQ systems capture the micro-variations in mechanical performance. High-resolution torque transducers (such as those from HBM) and optical angle encoders (like Heidenhain) are essential here. The DAQ architecture must utilize 24-bit Analog-to-Digital Converters (ADCs) to ensure the analog signal resolution matches the physical precision of the sensors. Controllers and power management systems orchestrate complex, multi-stage testing sequences via EtherCAT communication protocols, guaranteeing sub-millisecond control latency. Robust Programmable Logic Controllers (PLCs) handle this computational load reliably. Environmental control often involves integrated climatic chambers that simulate extreme temperature and humidity variations synchronously with programmed mechanical loads.

Error Source Identification and Compensation

The test bench itself introduces physical measuring errors into the data stream. This is the greatest challenge in precision mechanical testing. Four primary error sources exist within these complex measurement systems. They include torque sensor linearity error and angle sensor mounting eccentricity error. Friction torque within the measurement chain's own support bearings also contributes to data distortion. Finally, elastic torsion of the testing shafts twists the metal under high loads, fundamentally distorting the physical angle readings.

Advanced compensation methods mitigate these inherent mechanical flaws. Engineers apply localized linearization of the hysteresis curve. This mathematical approach characterizes the unique frictional profile of the bench at varying temperatures and loads. It converts identified torque errors into specific angle offsets for unified software calibration. To compensate for elastic torsion, the system applies Hooke's Law to the known geometry of the drive shafts, dynamically subtracting the calculated shaft twist from the real-time encoder data. Academic benchmarks show these rigorous compensation methods yield highly impressive results. They reduce geometric backlash testing errors to ±0.04 arcminutes. Elastic backlash errors drop to ±0.06 arcminutes, ensuring pristine data fidelity.

Safety, Fail-Safes, and Ergonomics (UI)

Hardware safety mechanisms are mandatory for high-speed, high-torque testing environments. A sudden gear rupture at 20,000 rpm acts like shrapnel. Emergency shutdowns and reinforced polycarbonate protective barriers mitigate high-speed rupture risks. Heavy steel plating surrounds the immediate test envelope. Fault-tolerant mechanisms provide additional operational security for testing personnel. These include laser leak sensors for fluid systems, vibration limits that trigger automatic power cuts, and mechanical limit switches. High-end systems utilize SIL3-rated safety PLCs to manage interlocks and emergency stop circuits independently of the main controller.

Operator ergonomics and UI design are equally important for reliable testing. Lowering cognitive load prevents costly human error during complex setup procedures. Software must feature clear visual contrast and distinct success/failure feedback using color-coded metrics. Real-time status animations help operators monitor long-duration thermal tests efficiently without staring at raw data matrices. Integrated calibration protocols guide the operator step-by-step through routine sensor zeroing. Digital Standard Operating Procedures (SOPs) display directly on the primary HMI, streamlining daily workflows and ensuring strict compliance with laboratory standards.

Critical Evaluation Dimensions for Procurement

Standardized Testing Items Checklist

Procurement teams must evaluate vendor software and hardware capabilities rigorously before issuing a purchase order. A comprehensive testing suite ensures the DUT meets all operational and safety parameters defined by engineering. Relying on partial data or skipping specific evaluations can lead to catastrophic field failures and warranty claims. The following tables outline the mandatory testing items for precision gearboxes and compare classification parameters.

Realistic Simulation vs. Static Testing

Evaluating a bench requires looking far beyond simple steady-state conditions. Operating a gearbox at a constant speed and constant load reveals only a fraction of its performance profile. The system must replicate real-world transient loads accurately and dynamically. It should test the DUT under highly authentic, fluctuating environmental scenarios, such as sudden torque spikes caused by uneven terrain or robotic collisions. The software must parse user-uploaded load spectrums, translating field data directly into servo motor commands.

For EV applications, the integration of Hardware-in-the-Loop (HiL) and battery simulators is absolutely vital. These simulators match specific dynamic voltage and current characteristics of the electric vehicle. They replicate the exact electrical behavior and motor torque delivery curves during rapid load shifts, regenerative braking, and heavy acceleration events. The bench integrates directly with the vehicle's CAN bus, receiving and executing commands just as the physical chassis would. Static testing alone cannot uncover the transient NVH issues, lubrication foaming, or sudden thermal spikes that occur during these real-world operations.

Total Cost of Ownership (TCO), ROI, and Compliance Realities

Energy Regeneration and Operational Costs

Continuous heavy-duty testing consumes massive amounts of industrial electricity. Running a 500 kW motor system continuously for endurance testing generates enormous utility bills. Modern drive and load motor systems address this operational expense through four-quadrant energy regeneration. These advanced systems utilize a shared DC bus between the input drive motor and the output load motor. They capture kinetic energy during deceleration or active torque simulation. They convert this mechanical energy back into usable electrical power.

The system then feeds this power directly back into the facility's grid, rather than dissipating it as wasted heat through massive resistor banks. This regenerative technology drastically reduces the electricity overhead of continuous testing operations, often recovering up to 80% of the energy expended during the cycle. Over a five-year lifecycle, energy regeneration significantly improves the equipment's overall ROI. Facilities can calculate exact payback periods by comparing local kilowatt-hour rates against the anticipated continuous testing load.

Global Compliance and Tariffs

Test bench data outputs must align perfectly with international manufacturing standards. Calibration cycles must meet stringent automotive and industrial requirements, such as ISO 9001 and IATF 16949. If a manufacturer faces an audit or a liability claim, the test bench's historical data serves as the primary legal defense regarding component quality. Procurement teams must also navigate complex international trade regulations when sourcing capital equipment globally.

International buyers should classify these systems under specific customs codes to ensure accurate landed cost calculations. For example, HTSUS 9031.20.0000 applies to measuring or checking instruments, appliances, and machines. This exact classification helps accurately forecast import tariffs, which typically hover around 1.7% in the US, depending on the country of origin. Understanding these legal classifications and maintaining proper documentation prevents unexpected budget overruns and delays at customs during the procurement phase.

Modularity and Future-Proofing

The long-term ROI of a testing system heavily depends on its physical and digital modularity. Facilities must seamlessly upgrade DAQ software as global testing standards evolve or as new drive cycles are standardized. Technicians need the ability to swap out torque flanges quickly between shifts to accommodate varying product sizes. Integrating new vibration sensors or thermal imaging cameras should not require a complete system overhaul or proprietary software patches.

Adapting mechanical fixtures allows the bench to test new precision speed reducers entering the market years after the initial purchase. A base frame designed with modular T-slots provides this mechanical flexibility. This future-proofing strategy prevents the expensive physical infrastructure from becoming obsolete within a few years, amortizing the capital expenditure over a much longer operational lifespan.

Procuring a precision testing system represents a strategic investment in product reliability and competitive differentiation. It is a critical tool for corporate liability mitigation. Procurement teams should prioritize vendors offering transparent error-compensation methodologies and verifiable sensor accuracy data. Shortlisted vendors must utilize top-tier internal components and provide robust local engineering support. This engineering partnership ensures ongoing calibration accuracy, preventative maintenance, and seamless software integration over the life of the machine.

Next steps for engineering and procurement teams evaluating a new system:

• Audit current testing bottlenecks to identify specific data acquisition gaps, particularly regarding NVH and transient load capture.

• Define exact DUT parameters across all product lines, including maximum torque, maximum RPM, and required arcsecond precision.

• Request a proof-of-concept dynamic test from shortlisted vendors using your specific mechanical components and field load data.

• Calculate the projected energy savings from regenerative load systems over a five-year operational period to offset initial capital requests.

• Verify that the vendor's software matrix supports automated reporting and database formatting for strict ISO/IATF compliance audits.

FAQ

Q: What is the difference between a standard dynamometer and a precision reducer test bench?

A: Standard dynamometers measure macro-level power and torque outputs. They lack the sensor fidelity to capture micro-level transmission errors. A precision test bench measures backlash, stiffness, and kinematic deviations down to the arcsecond. This requires specialized high-resolution encoders and advanced data acquisition systems.

Q: How is transmission error measured in a harmonic gear reducer test bench?

A: The system uses dual high-resolution optical angle encoders. One encoder sits on the input shaft, and the other on the output shaft. The DAQ software compares the actual output angle against the theoretical kinematic ratio. This calculates the precise transmission error in real-time.

Q: Why is hysteresis curve compensation necessary in test bench calibration?

A: The test bench itself introduces physical measuring errors. Hysteresis curve compensation systematically accounts for mechanical friction and elastic deformation. These factors are inherent in the test bench's own measurement chain. Compensation converts torque errors into angle errors for highly accurate unified calibration.

Q: Can one test bench accommodate both RV and planetary speed reducers?

A: Yes, provided the system features high modularity and interchangeable fixtures. However, critical limitations exist regarding torque and speed ranges. Light-duty high-speed planetary gears and heavy-duty high-torque RV reducers often necessitate separate, specifically configured benches to maintain accuracy.

Q: What are the power requirements for a heavy-duty reducer test bench?

A: Heavy-duty benches require high voltage industrial power supplies to simulate massive loads. However, modern systems mitigate energy consumption using regenerative load technology. The load motors act as generators, returning power to the facility's grid and significantly offsetting operational energy costs.

Q: How often does a precision test bench require calibration?

A: Industry standards typically require annual calibration for precision measurement sensors. However, high-usage EoL environments may require bi-annual checks. Systems must feature integrated calibration protocols and clear UI documentation. This ensures operators maintain strict compliance with ISO and IATF 16949 standards.
