Views: 0 Author: Site Editor Publish Time: 2026-05-29 Origin: Site
The rapid deployment of AI-driven humanoid robots and high-payload industrial arms demands absolute zero-fault tolerance. This requirement elevates the joint module to the most mission-critical component in automation architecture. Validating the complex interplay of harmonic or RV reducers, servo motors, and absolute encoders requires measurement equipment that does not introduce its own mechanical or electrical variance. Poor testing infrastructure leads to undetected micro-slip, gear stripping, backlash drift, and ultimately, catastrophic field failures in high-stakes environments like surgical robotics or heavy manufacturing.
Evaluating a test bench requires moving beyond basic spec sheets to scrutinize its data acquisition rates, dynamic load handling, multi-axis functional validation, and environmental isolation. Standard dynamometers simply cannot map the intricate kinematics required by modern automated systems. This guide breaks down the precise engineering criteria for selecting a reliable robotic joint test system capable of verifying true electromechanical fidelity.
A reliable test bench must comprehensively map both static kinematics (ROM, stiffness in Nm/arcmin) and dynamic behaviors (high-speed torque fluctuation, back EMF) without invasive sensor weight altering natural joint mechanics.
Selecting between a 100N.m and 1000N.m Robot Joint Module Test Bench depends heavily on the actuator architecture (electric vs. hydraulic/pneumatic) and the specific reducer technology (Harmonic vs. RV) being validated.
True functional validation requires verifying software logic latency (≤ 100ms) synchronously with physical actuator response, demanding deep integration between physical dynamometers, motion capture, and software environments like ROS/Gazebo.
Evaluating Total Cost of Ownership (TCO) for testing equipment requires factoring in long-term calibration costs, environmental shielding (EMI/RFI), and the validation of AI-driven wear compensation algorithms.
Robotic joints operate under extreme mechanical stress and highly variable electrical parameters. When quality assurance protocols fail to simulate real-world physical demands accurately, critical vulnerabilities slip through the production line undetected. Understanding these specific failure modes highlights why precision testing equipment is a mandatory investment for hardware engineers.
Inadequate endurance testing routinely fails to predict long-term material degradation. Continuous operation breaks down gear teeth, compromises structural bearings, and degrades internal bushings. A frequent failure point is gear stripping, which is directly caused by excessive micro-slip within the reducer module. Furthermore, high-precision P4 bearing failures occur frequently due to a combination of material fatigue and undetected electrical shaft currents that cause micro-pitting on the bearing races.
Testing environments must also monitor the degradation of lubrication seals. Continuous movement and thermal expansion wear down rubber O-rings and skeleton oil seals over thousands of cycles. Once a seal breaches, internal lubricant escapes, friction coefficients spike rapidly, and mechanical seizure becomes inevitable. A high-fidelity testing system tracks the increase in Coulomb friction over time to predict these seal failures before they result in a locked joint.
Modern joint modules utilize highly specialized motor topologies, including Brushless DC (BLDC), Servo, Direct Drive, and Stepper motors. Each distinct architecture presents unique electrical vulnerabilities that require thorough mapping.
Stator Winding Shorts: Testing must identify minor insulation breakdowns before deployment. Overheating degrades wire insulation, causing impedance imbalances that reduce motor efficiency and increase heat generation.
Rotor Demagnetization: Subjecting a joint to extreme thermal loads can permanently demagnetize the rare-earth magnets inside the rotor, leading to a permanent loss of torque capacity.
Eccentricity and Cogging: Minor manufacturing defects in the rotor assembly cause excessive cogging torque, resulting in violent vibrations at low speeds that disrupt precision positioning.
Mechanical perfection offers no value if the internal control logic lags behind physical reality. Millisecond delays in logic execution or PID loop tuning errors cause heavy-payload industrial arms to overextend or collide with their surroundings. In medical environments, an actuator response delay exceeding 50ms can cause life-threatening surgical errors. Sensor accuracy drift poses another significant hazard. If an internal quadrature encoder drops below 97% accuracy due to vibration or EMI, the joint loses its exact spatial orientation.
Controlled laboratory conditions rarely match the harsh realities of a live factory floor. Fluctuating temperatures alter gear tolerances, directly increasing mechanical backlash and reducing overall transmission accuracy. Moisture and airborne corrosive agents induce oxidation, while particulate dust ingress accelerates internal abrasion within the reducer. Reliable testing requires environmentally controlled parameters that replicate facility conditions. Integrating thermal cycling chambers with the testing frame helps engineers quantify exactly how temperature shifts skew kinematic performance data.
An industrial-grade Robot Joint Module Test Bench executes an exhaustive array of electromechanical diagnostic routines. These systems utilize sensitive torque transducers and rapid data acquisition networks to map the complete operational profile of the actuator under test.
Accurate load testing visually maps the inverse relationship between operating speed and available torque. High-precision dynamometers must achieve at least ±0.5% full-scale accuracy during these load profiling tests. Engineers map continuous stall torque against peak stall torque to define the safe operating envelope. Continuous stall torque defines the absolute maximum force the joint can maintain indefinitely without exceeding internal thermal limits. Conversely, peak stall torque measures the maximum force allowed for very short, transient bursts.
Robust testing strictly isolates the continuous work zone from the short-term overload zone. A standard overload procedure applies 1.2x the rated torque for less than two minutes while monitoring stator temperatures to verify thermal stability. During these load tests, the data acquisition network records secondary performance metrics, including total Range of Motion (ROM), operational noise levels in decibels, and lifecycle durability across millions of cyclical movements.
| Diagnostic Metric | Testing Methodology | Acceptable Tolerance Range |
Continuous Stall Torque | Dynamometer load profiling under sustained RPM. | Continuous operation at ≤ 85°C motor temp. |
Peak Stall Torque | 1.2x to 1.5x rated load applied for < 120 seconds. | No mechanical slip or insulation breakdown. |
Transmission Backlash | Dual-encoder hysteresis mapping at zero speed. | ≤ 1 arcmin (Harmonic) / ≤ 0.5 arcmin (RV). |
Mechanical Stiffness | Variable torque load applied vs angular deflection. | Defined Nm/arcmin specification met at 100% load. |
Cogging Torque | Low-speed, unpowered rotational resistance mapping. | < 2% of rated continuous torque. |
Precision robotics demand minimal end-effector deviation. Achieving sub-millimeter accuracy requires rigorous testing of transmission accuracy and internal mechanical backlash. Harmonic reducers rely on flexible splines and often claim zero-backlash operation, typically measuring ≤ 1 arcminute. Heavy-duty RV reducers handle massive payloads and usually feature backlash measurements of ≤ 0.5 arcminute. The measurement system plots these minute angular deviations to verify manufacturer claims.
To measure true backlash, engineers utilize a strict dual-encoder framework. The process follows these exact steps:
Secure the robotic joint module to the primary rigid mounting plate of the test frame.
Engage the input shaft lock to prevent the motor rotor from turning.
Apply a calculated micro-torque to the output shaft in the clockwise direction using a servo-driven load cell.
Record the exact angular displacement utilizing an external, ultra-high-resolution reference encoder.
Reverse the applied torque to the counter-clockwise direction and plot the resulting hysteresis deadband.
By comparing the internal 17-bit to 25-bit absolute encoder data against the external reference encoder, the system generates bidirectional positioning repeatability curves. This ensures the joint returns to its programmed position with greater than 99% consistency.
Evaluating internal motor health requires advanced electromechanical diagnostics. Passive Back Electromotive Force (Back EMF) testing is a standard procedure across the industry. During this test, the primary system physically drives the unpowered joint motor up to its rated operational speed. Oscilloscopes then capture and analyze the resulting voltage slope and waveform. A clean, symmetrical sinusoidal waveform verifies permanent magnet integrity and confirms perfect winding balance across the motor stator. Active testing masks these issues, making passive Back EMF analysis mandatory.
Energy efficiency plotting runs concurrently. The DAQ measures total electrical power input from the drive amplifiers and compares it against the mechanical dynamometer output. By running the joint through highly complex, multi-axis load profiles, the software plots system-wide energy efficiency percentages. Higher efficiency translates directly to extended battery life in untethered mobile robots and drastically lower thermal output in enclosed industrial systems.
Basic quality assurance heavily relies on static measurements. However, automated systems operate in highly dynamic environments. Validating a modern joint module requires hardware capable of capturing high-speed, transient dynamic behaviors that static load cells miss entirely.
Static load cells perform adequately when measuring a stationary robotic arm holding a static payload. They fail entirely when attempting to capture real-world operational stresses. Rapid acceleration, sudden deceleration, and shifting load inertia completely alter the kinetic forces acting upon the reducer and bearings. An effective system utilizes dynamic torque transducers capable of high-frequency sampling (often 10kHz or higher) to register micro-fluctuations in applied torque.
Furthermore, structural testing introduces the "observer effect." Adding external torque sensors, wiring harnesses, or 3D motion tracking markers adds physical weight. This extra mass drastically alters the inertia of lightweight joint modules, directly skewing natural kinematics. High-fidelity systems eliminate this interference by utilizing non-invasive measurement techniques, such as remote laser tracking, or by embedding low-mass sensor arrays directly into the stationary testing frame.
Dynamic testing demands hard real-time Data Acquisition (DAQ) systems via protocols like EtherCAT or CANopen. These networks capture transient actuator responses instantly. The performance target for functional testing is strict: the system must achieve a response latency of ≤ 100ms with a recorded data error rate of < 1%. Fast DAQ hardware synchronizes physical load readings with visual motion capture data down to the millisecond.
Engineers bridge these physical test results with advanced simulation environments like ROS or Gazebo. This digital twin methodology allows developers to validate closed-loop control algorithms in real-time. It enables comprehensive testing of IoT data processing pipelines. Moreover, it allows engineers to validate AI-driven algorithmic wear compensation. The embedded AI continuously learns from physical test data, adjusting active motor control parameters to compensate for mechanical wear and simulated environmental interference.
Procuring the appropriate testing infrastructure depends heavily on the mechanical limits of your specific target applications. A mismatched testing frame creates severe operational bottlenecks. It will either lack the granular sensitivity to measure fine micro-movements or lack the sheer structural rigidity to handle extreme industrial loads safely.
A 100N.m Robot Joint Module Test Bench is engineered strictly for precision over raw power. This capacity aligns perfectly with testing humanoid robotics featuring complex, multi-plane universal joints. It is the gold standard for medical surgical arms requiring absolute zero-fault tolerance and lightweight collaborative robots designed to work alongside humans safely.
Testing priorities at the 100N.m scale focus heavily on high-resolution sensing. The equipment must detect minute friction changes within the harmonic reducer. Back-drivability testing is a primary focus, ensuring a human operator can physically back-drive the unpowered robotic arm without facing excessive mechanical resistance. The dynamometry assembly must feature extremely low viscous and Coulomb friction to validate compliant control systems accurately. Rapid electric actuator validation, focusing strictly on logic latency, dictates the operational workflow.

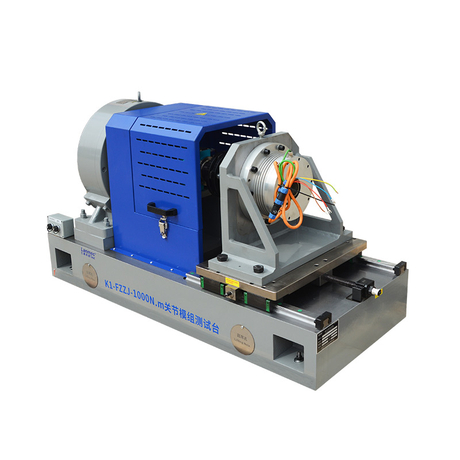

Conversely, a 1000N.m Robot Joint Module Test Bench manages massive kinetic forces. Target applications include heavy industrial automation handling payloads exceeding 50kg. This encompasses 6-axis automotive welding robots, heavy hydraulic actuator assemblies, and high-payload linear gantry joints.
Testing priorities shift toward structural endurance. The extreme rigidity of the test frame is the most critical specification. If the steel frame flexes even slightly under a 1000N.m load, all transmission accuracy data becomes completely invalid. Active thermal management is required during prolonged high-load stall testing to dissipate the immense heat generated by industrial servo motors. Robust safety enclosures are mandatory. If a heavy-duty RV reducer shatters under maximum peak torque testing, the steel enclosure must contain the resulting shrapnel to protect engineering staff.
| Feature / Specification | 100N.m Test Bench | 1000N.m Test Bench |
Target Applications | Humanoid joints, surgical arms, collaborative robots. | 6-axis industrial arms, welding robots, linear gantries. |
Primary Reducer Type Tested | Harmonic Reducers (High precision, low payload). | RV Reducers (High rigidity, heavy payload). |
Actuator Architecture Focus | Electric (BLDC, Servo, Direct Drive, Stepper). | Electric, Hydraulic, Pneumatic. |
Core Testing Priorities | Micro-movement tracking, back-drivability, low friction. | Frame rigidity, heat dissipation, catastrophic failure containment. |
Key Performance Metrics Tracked | Hysteresis < 1 arcmin, logic latency < 50ms. | Peak stall endurance hours, continuous thermal stability. |
Load Cell Resolution Needed | 24-bit ADC required to measure 0.01 Nm torque ripples. | High-capacity load cells focused on peak load durability. |
Evaluating Total Cost of Ownership (TCO) requires balancing initial capital expenditure against long-term operational efficiency. The upfront capital cost of a higher-capacity 1000N.m bench is substantial. However, purchasing an under-sized testing system restricts your R&D capabilities, creating a permanent operational bottleneck. Long-term Return on Investment (ROI) is primarily achieved through significantly reduced warranty claims. Accelerated hardware iterations—especially for complex bio-inspired humanoid designs—provide a massive competitive advantage. Finally, utilizing software that generates automated, standardized engineering reports drastically reduces manual QA labor costs.
Procuring and installing advanced measurement equipment introduces specific operational risks into your facility. Identifying these environmental and systemic risks early ensures your testing data remains pristine and actionable.
Measurement degradation occurs naturally over time. Constant dynamic torque application causes load cells to drift from their factory zero-points. To mitigate this data corruption, establish strict in-house calibration routines immediately upon installation. Calibrate test bench load cells and reference encoders using traceable external weight standards on a strict quarterly schedule. Ignoring these calibration overheads guarantees that your sensor accuracy will eventually drop below the required 97% operational threshold.
Test benches operate as highly sensitive data collection instruments. High-power servo drives nearby generate severe Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). This invisible interference corrupts digital encoder signals, causing erratic positional data. Mitigate this by shielding all communication cables with double-shielded twisted pairs. Furthermore, isolate the testing frame from facility vibrations. Heavy factory machinery operating nearby induces mechanical noise into the load cells. Installing the test rig on an isolated, floating concrete pad prevents ambient vibration from skewing dimensional accuracy data.
A functional precision bench generates gigabytes of raw telemetry data daily. Storing this data in isolated silos renders the information useless for macro-level analysis. Ensure the test bench software directly supports automated CI/CD pipelines, such as Jenkins or GitLab CI. The system must export high-frequency actuator "black box" data seamlessly to your central servers. Integrating physical testing data directly into your central R&D database streamlines the entire product development lifecycle and ensures all engineering teams operate from a single source of truth.
A high-precision robot joint module test bench is not a generic measurement tool. It operates as a highly specialized electromechanical ecosystem. It must inherently possess significantly tighter tolerances, lower friction coefficients, and lower operational latency than the advanced robotic joints it is built to evaluate. Whether verifying the micro-movements of humanoid limbs or the sheer holding power of industrial welding arms, rigorous functional validation is the only way to prevent catastrophic field failures.
Base your procurement decision strictly on your maximum peak stall torque requirements, necessary encoder resolution, and target actuator architecture. Prioritize systems capable of conducting dynamic, closed-loop functional validation without introducing physical hardware interference. Demand strict data synchronization and enforce hard real-time latency limits on all data acquisition networks.
To ensure your testing protocols meet stringent industrial standards, take the following next steps:
Audit your historical failure logs to identify recurring issues, specifically mapping incidents from stator winding shorts to P4 bearing fatigue.
Define the exact continuous and peak stall torque limits required across your specific product lineup to size your equipment correctly.
Require potential equipment vendors to physically demonstrate bidirectional repeatability on their reference machines using a strict dual-encoder setup.
Develop a comprehensive facility isolation plan to shield your designated measurement area from ambient vibration and severe electromagnetic interference.
A: Continuous stall torque represents the maximum load a joint can hold indefinitely without exceeding safe thermal limits. Peak stall torque is the absolute maximum load the joint can endure for a brief period—typically under two minutes—before sustaining mechanical damage or winding failure. Proper testing maps both boundaries to establish safe operating envelopes.
A: The equipment utilizes a dual-encoder framework. It compares angular position data from the joint's internal absolute encoder against a highly precise external reference encoder mounted on the test frame. Stiffness is calculated by applying incrementally varying torque loads to the output shaft and measuring the resulting angular deflection in Nm/arcmin.
A: Passive Back EMF testing verifies the internal electrical integrity of an unpowered motor. By mechanically driving the rotor to its rated speed and analyzing the generated voltage waveform via an oscilloscope, engineers identify permanent magnet demagnetization, rotor eccentricity, and stator winding imbalances before active power masks these underlying flaws.
A: Generally, no. A heavy-duty system utilizes massive structural components and large-scale load cells. These elements lack the low-range resolution and friction sensitivity necessary to measure the minute micro-movements, back-drivability, and low-torque compliance essential for testing low-payload collaborative robotic arms effectively.
A: For precision robotics, functional testing demands a system response latency of ≤ 100ms with less than a 1% data error rate. Control system logic processing, motor driver execution, and sensor data transmission must all occur within this 100ms window to prevent positional overshoot and heavy-payload collisions.
A: Testing introduces an observer effect where added sensor mass alters joint inertia. Advanced testing systems mitigate this interference by utilizing non-contact laser measurement tools, remote optical tracking, or by integrating ultra-lightweight sensor arrays directly into the stationary structural frame rather than attaching them to the moving end-effector.
A: The measurement system physically induces controlled mechanical resistance or simulates wear patterns on the joint. High-speed data acquisition systems capture the real-time telemetry. This data feeds into simulation environments like ROS, allowing engineers to verify if the embedded AI algorithm correctly adjusts motor control parameters to compensate for the degradation.
